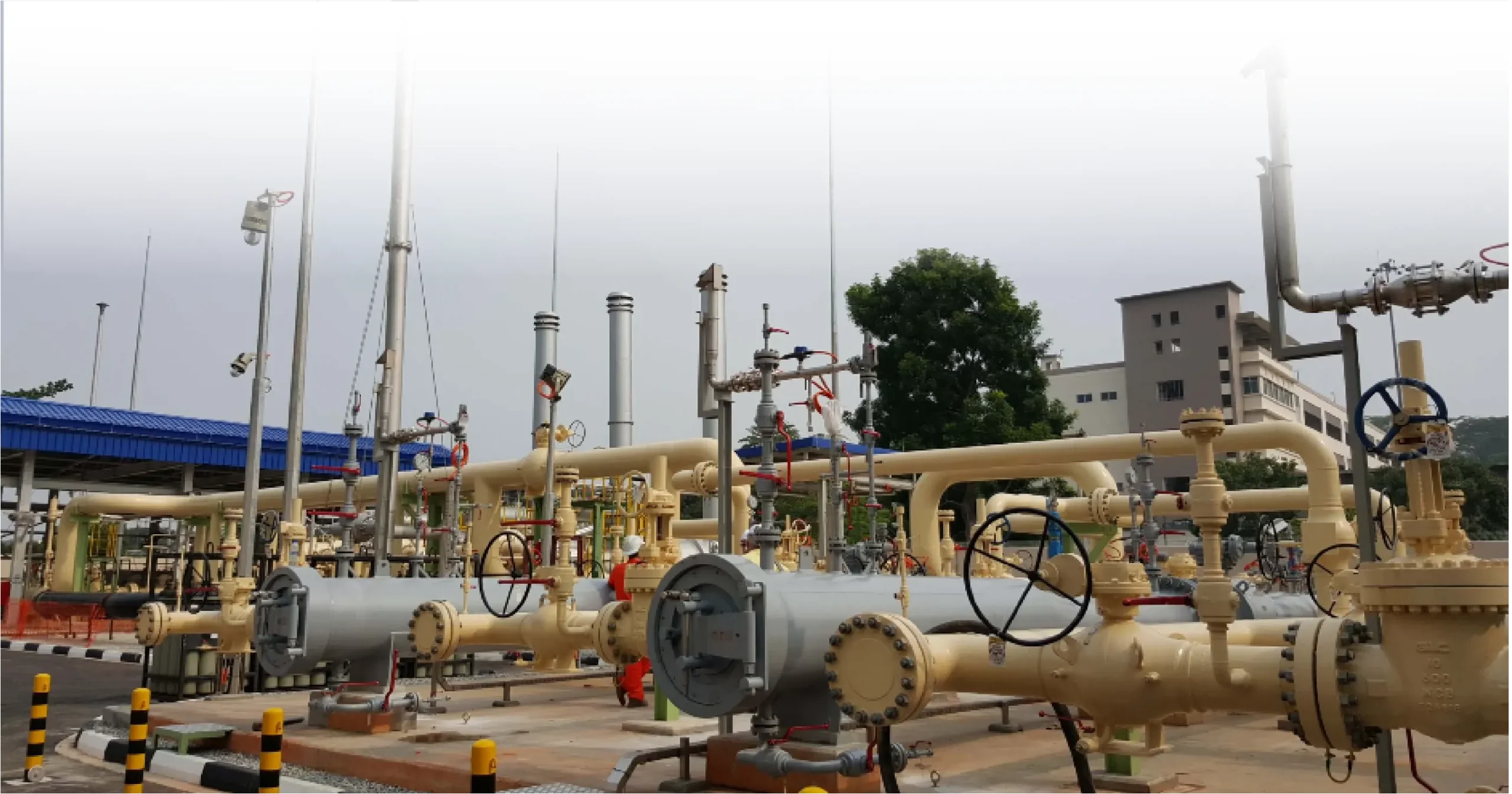

Pipeline Inspection Gauge (PIG) Launcher & Receiver Skid
During pigging operations, the PIG will be launched or received by the PIG launcher or receiver. Our PIG launcher/receiver is designed mechanically with the latest edition of ASME SEC VIII Div 1, U Stamp and features a quick opening enclosure (QOC).
The QOC comes with a mechanical safety interlock to prevent accidental opening when the PIG launcher or receiver is pressurized. We provide PIG signallers with a limit switch for remote monitoring PIG arrival to PIG receiver. Furthermore, we also supply bidirectional PIG traps which both launch and receive PIGs.
Design Type: Launcher, Receiver
Skid or field mounted
Size: Up to 70”, ANSI 2500
Bi-directional design for launching and receiving operations
Suitable for Standard or Intelligence PIG
Built-in Safety Device and Interlocking System
Equipped with Quick Opening Closure, PIG Signaller and Instrumentation
Optional: Jib Crane/PIG Tray System
